CCFC3009PT

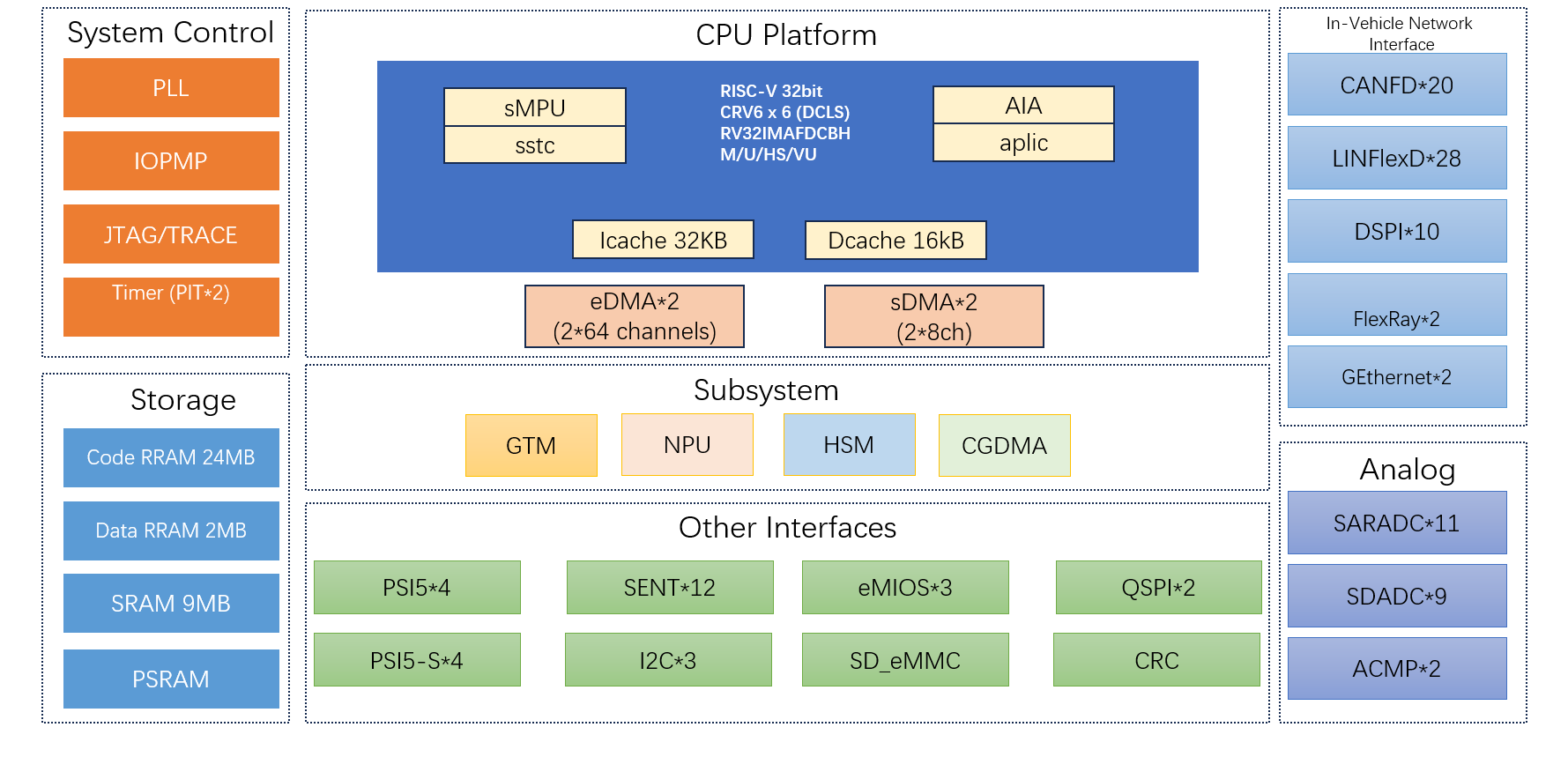

Block Diagram

Features

● CPU Core

    - Main Frequency: 500MHz (maximum)

    - Superscalar RISC-V architecture with 12 cores (6+6): support lock-step and CPU cores can be decoupled/coupled as configration

    - Double-precision FPU and DSP acceleration

    - DMIPS: >10000

    - Support hardware virtualization

● Rich on-chip resources and peripherals

    - Embedded 24MB Code RRAM / 2MB Data RRAM, support hardware AB SWAP and OTA upgrade

    - 9MB SRAM

    - Integrating 2x GETH (SGMII and RGMII), 20x CANFD, 28x LIN, 2x FlexRay, 10x DSPI, 1x GTM4.1, 10x SARADC (total 110 channels), 9x SDADC

    - Expandable external memory interfaces (EBI/EMMC/PSRAM)

    - Integrated data routing CGDMA

● High security and reliability

    - Full-stack security: MCU, MCAL, and libraries have achieved functional safety of ASIL-D

    - Comply with EVITA-Full and Supports international and GM/T cryptographic algorithms

    - Integrating post-quantum cryptographic algorithms

● Embedded AI processor

    - NPU 0.3TOPS
